简介#
智汀云盘 是一款在 Swift 5 中开发的 iOS 云盘APP。该应用一直在积极升级以采用 iOS 和 Swift 语言的最新功能。此应用配合智汀家庭云这款智能家居APP授权使用。
1. 快速上手#
1.1 开发工具#
- 当前版本适用于 Xcode 版本 Xcode 13 。如果您使用不同的 Xcode 版本，请查看之前的版本。
- 此版本为仅使用 Swift 5 支持 iOS 13+。
1.2 源码地址#
Git Hub
名称 URL 描述 zhiting-nas-ios https://github.com/zhiting-tech/sa-ios-sdk iOS源码 gitee
名称 URL 描述 zhiting-nas-ios https://gitee.com/zhiting-tech/sa-ios-sdk iOS源码
1.3 构建版本#
克隆存储库
bash $ git clone https://xxxx/sa-ios-sdk.gitCocoaPods
安装CocoaPods，详情可查询CocoaPods
CocoaPods安装完成后，请用CocoaPods下载第三方库
$ cd sa-ios-sdk$ pod install如遇下载失败，则可能需科学上网，自行配置网络代理。
运行程序
pod install 成功后，在模拟器中编译并运行应用程序。
如果您没有看到任何数据，请检查 "Simulator" -> "Debug" -> "Location" 以更改位置。
2. 开发指南#
2.1 设计模式#
本项目采用MVC设计模式
2.2 组织架构#

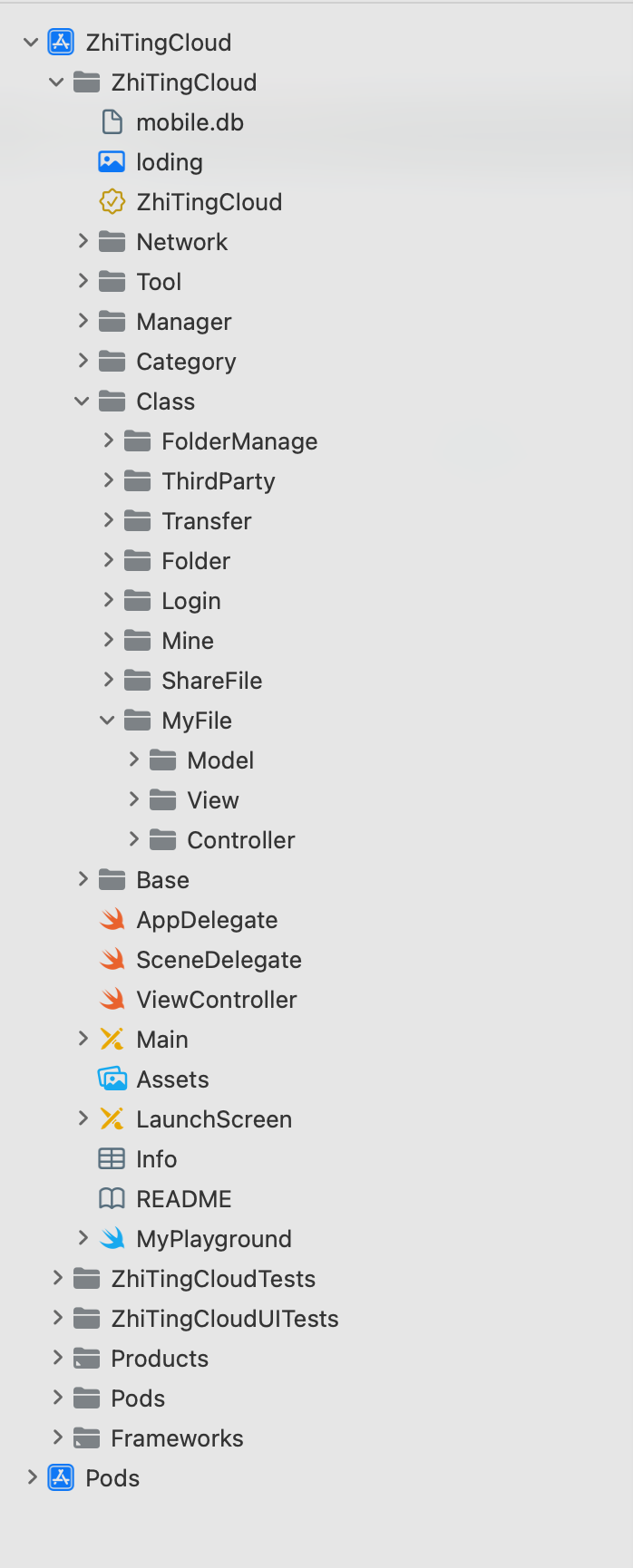

项目组织架构如下图
2.3 授权登录#
登录授权页面点击按钮后通过URLSchema的方式唤醒智汀家庭云App进行授权
loginBtn.clickCallBack = { [weak self] _ in guard let self = self else { return } if let url = URL(string: "zhiting://operatioaction=diskAuth"), UIApplication.shared.canOpenU(url) { print("跳转成功") UIApplication.shared.open(url, options: [:]completionHandler: nil) } else { self.showToast("请先安装 \"智汀家庭云\" APP") print("跳转失败") }}智汀家庭云授权部分代码片段:
/// 授权当前绑定SA的家庭 private func requestAreaScopeToken() { let scopes = authItems.filter({ $0.isSelected }).map(\.name) if !authManager.currentArea.is_bind_sa { showToast(string: "当前家庭未绑定SA".localizedString) confirmButton.selectedChangeView(isLoading: false) return }
ApiServiceManager.shared.scopeToken(area: authManager.currentArea, scopes: scopes) { [weak self] response in guard let self = self else { return } let area = self.transferToAuthedArea(from: self.authManager.currentArea, scopeTokenModel: response.scope_token) if self.authManager.isLogin { self.returnAuthResult(cloud_user_id: self.authManager.currentArea.cloud_user_id, cloud_url: cloudUrl, areas: [area]) } else { area.id = 0 self.returnAuthResult(cloud_user_id: nil, cloud_url: nil, areas: [area]) } } failureCallback: { [weak self] code, err in self?.showToast(string: err) self?.confirmButton.selectedChangeView(isLoading: false) } } private func returnAuthResult(cloud_user_id: Int?, cloud_url: String?, areas: [AuthedAreaModel]) { let result = ResultModel() result.cloud_url = cloud_url result.cloud_user_id = cloud_user_id result.nickname = authManager.currentUser.nickname result.areas = areas if let cloudUrl = cloud_url, let cookie = HTTPCookieStorage.shared.cookies?.first(where: { cloudUrl.contains($0.domain) }) { result.sessionCookie = cookie.value } guard let json = result.toJSONString(), let data = try? NSKeyedArchiver.archivedData(withRootObject: json, requiringSecureCoding: true) else { confirmButton.selectedChangeView(isLoading: false) return } try? data.write(to: shareTokenURL, options: .atomic) confirmButton.selectedChangeView(isLoading: false) if let url = URL(string: "zhitingcloud://operation?action=auth") { UIApplication.shared.open(url, options: [:], completionHandler: nil) } dismiss(animated: true, completion: nil) }智汀App授权成功后将结果归档并写入到AppGroup共享空间的shareToken.plist文件中，然后通过URLSchema的方式唤醒智汀网盘App，智汀网盘App解析URLSchema，判断是授权成功响应时获取AppGroup共享空间的shareToken.plist文件内容并进行解档得到授权的家庭、用户和云端账号cookies等信息,储存信息并跳转页面.(详情见OpenUrlManager类)
OpenUrlManager类:
import Foundation
// MARK: - OpenUrlManagerclass OpenUrlManager { enum Action: String { /// 网盘授权 case auth }
static var shared = OpenUrlManager()
private init() {}
func open(url: URL) { let urlString = url.absoluteString print("--------------------- open from other app ----------------------------------") print(Date()) print("---------------------------------------------------------------------------") print("open url from \(urlString)") print("---------------------------------------------------------------------------\n\n") guard let components = urlString.components(separatedBy: "zhitingcloud://operation?").last, let action = components.components(separatedBy: "&").first?.components(separatedBy: "=").last else { return } switch Action(rawValue: action) { case .auth: // zhitingcloud://operation?action=auth let shareTokenURL = FileManager.default.containerURL(forSecurityApplicationGroupIdentifier: "group.zhiting.tech")!.appendingPathComponent("shareToken.plist") /// 读取授权成功响应并解密 guard let data = try? Data(contentsOf: shareTokenURL), let json = try? NSKeyedUnarchiver.unarchiveTopLevelObjectWithData(data) as? String else { return } if let authResult = AuthModel.deserialize(from: json) { let user = User() user.nickname = authResult.nickname
/// 存储家庭信息 AreaManager.shared.cacheAreas(areas: authResult.areas) if let area = AreaManager.shared.getAreaList().first { AreaManager.shared.currentArea = area user.user_id = area.sa_user_id } if let cloudUserId = authResult.cloud_user_id, let cloudUrl = authResult.cloud_url, let cookieValue = authResult.sessionCookie { /// 云端的授权 user.user_id = cloudUserId UserManager.shared.isCloudUser = true UserManager.shared.cloudUrl = cloudUrl
/// 写入云端账号cookie if let cookie = HTTPCookie(properties: [ HTTPCookiePropertyKey.domain : cloudUrl, HTTPCookiePropertyKey.value : cookieValue, HTTPCookiePropertyKey.path : "/", HTTPCookiePropertyKey.name : "_session_" ]) { HTTPCookieStorage.shared.setCookie(cookie) } } UserManager.shared.currentUser = user UserManager.shared.cacheUser(user: user) } SceneDelegate.shared.window?.rootViewController = TabbarController() default: break } }}2.4 文件列表及权限说明#
2.4.1 文件列表#
2.4.1.1 我的文件——MyFileViewController.swift#
- 数据获取——通过SA接口获取数据
NetworkManager.shared.fileList(path: "/", page: page, page_size: 30) { [weak self] response in guard let self = self else { return } LoadingView.hide() self.tableView.mj_header?.endRefreshing() self.tableView.mj_footer?.endRefreshing() //删选没有可读权限的文件 let datas = response.list.filter({$0.read != 0}) if isReload {//下拉刷新 or 首次加载数据 if datas.count == 0 { self.tableView.mj_footer?.isHidden = true self.tableView.reloadData() }else{ self.emptyView.removeFromSuperview() self.currentDatas = datas self.tableView.reloadData() } }else{//上拉加载更多数据 if !response.pager.has_more {//已无数据 self.tableView.mj_footer?.endRefreshingWithNoMoreData() self.isGetAllData = true return } self.isGetAllData = false self.currentDatas += datas self.tableView.reloadData() } } failureCallback: {[weak self] code, err in guard let self = self else { return } LoadingView.hide() self.tableView.mj_header?.endRefreshing() self.tableView.mj_footer?.endRefreshing() if self.currentDatas.count == 0 { self.tableView.addSubview(self.emptyView) self.emptyView.snp.makeConstraints { $0.center.equalToSuperview() $0.width.equalTo(Screen.screenWidth) $0.height.equalTo(ZTScaleValue(110)) } }else{ self.emptyView.removeFromSuperview() } self.showToast("\(err)") }- 此页面无选择功能
- 点击文件夹进入自己目录
let vc = ChangeFolderPlaceController() let nav = UINavigationController(rootViewController: vc) nav.modalPresentationStyle = .fullScreen self.present(nav, animated: true, completion: nil)2.4.1.2 共享文件——ShareFileViewController.swift#
用户可以获取到其他用户共享出来的文件夹.
/// 请求列表数据private func getDiskData(){ let page = (currentDatas.count / 30) + 1 NetworkManager.shared.shareFileList(page: page, page_size: 30) { [weak self] response in guard let self = self else {return} print("请求成功") LoadingView.hide() self.tableView.mj_header?.endRefreshing() self.tableView.mj_footer?.endRefreshing() //删选没有可读权限的文件 let datas = response.list.filter({$0.read != 0}) self.currentDatas.append(contentsOf: datas) if !response.pager.has_more { self.tableView.mj_footer?.endRefreshingWithNoMoreData() }
if self.currentDatas.count == 0 { //空数据展示页面 self.tableView.addSubview(self.emptyView) self.emptyView.snp.makeConstraints { $0.center.equalToSuperview() $0.width.equalTo(Screen.screenWidth) $0.height.equalTo(ZTScaleValue(110)) } self.tableView.reloadData() }else{ self.emptyView.removeFromSuperview() self.tableView.reloadData() }
} failureCallback: {[weak self] code, err in guard let self = self else { return } print("请求失败") LoadingView.hide() self.tableView.mj_header?.endRefreshing()
if self.currentDatas.count == 0 { //空数据展示页面 self.tableView.addSubview(self.emptyView) self.emptyView.snp.makeConstraints { $0.center.equalToSuperview() $0.width.equalTo(Screen.screenWidth) $0.height.equalTo(ZTScaleValue(110)) } }else{ self.emptyView.removeFromSuperview() } self.showToast("\(err)") } }- 共享文件与我的文件页面逻辑大致相同，但其他用户共享过来的文件夹允许选择功能模块
// MARK: - funtionTabbarAction funtionTabbarView.shareBtn.clickCallBack = { _ in print("点击分享到") let shareVC = FileShareController() shareVC.fileDatas = self.seletedFiles self.navigationController?.pushViewController(shareVC, animated: true) self.hideFunctionTabbarView() } funtionTabbarView.downloadBtn.clickCallBack = { _ in print("点击下载") } funtionTabbarView.copyBtn.clickCallBack = {[weak self] _ in guard let self = self else {return} print("点击复制到") let vc = ChangeFolderPlaceController() vc.isRootPath = true vc.currentPaths = ["根目录"] vc.seletedFiles = self.seletedFiles vc.type = .copy let nav = UINavigationController(rootViewController: vc) nav.modalPresentationStyle = .fullScreen self.present(nav, animated: true, completion: nil) self.hideAllFuntionView() } funtionTabbarView.resetNameBtn.clickCallBack = { [weak self] _ in guard let self = self else { return } print("点击重命名") guard let file = self.seletedFiles.first else { return } self.showResetNameView(name: file.name, isFile: file.type == 1) self.setNameView?.setNameCallback = { name in if name.isEmpty { SceneDelegate.shared.window?.makeToast("请输入名称".localizedString) return } if let originalExtension = file.name.components(separatedBy: ".").last, let newExtension = name.components(separatedBy: ".").last { if originalExtension != newExtension && file.type == 1 { let alertViewController = UIAlertController(title: "", message: "更改文件类型可能导致文件不可用,是否继续?", preferredStyle: .alert) alertViewController.addAction(UIAlertAction(title: "取消".localizedString, style: .cancel, handler: nil)) alertViewController.addAction(UIAlertAction(title: "确定".localizedString, style: .default, handler: { [weak self] _ in guard let self = self else { return } LoadingView.show() NetworkManager.shared.renameFile(path: file.path, name: name) { [weak self] response in guard let self = self else { return } file.name = name self.setNameView?.removeFromSuperview() self.hideAllFuntionView() self.tableView.reloadData() LoadingView.hide() SceneDelegate.shared.window?.makeToast("重命名成功".localizedString) } failureCallback: { code, err in SceneDelegate.shared.window?.makeToast(err) LoadingView.hide() } })) self.present(alertViewController, animated: true, completion: nil) return } }2.4.1.3 文件夹子集目录——FolderViewController.swift#
- 子集目录可存在各类型文件的存在形式，根据数据model的type来区分。
- 子集目录点击文件类型是，展示functionView，功能根据权限开放。
- 子集目录文件及文件夹均可选择，展示功能tabbar。
2.4.2 文件夹共享#
用户可以将文件夹共享给选中的用户,并根据自身需求赋予他们读写删的权限.
/// 共享文件夹给用户 private func shareFilesToCloud() { var filePaths = [String]() for file in fileDatas { filePaths.append(file.path) } if seletedUsers.count == 0 { return } let userIds = seletedUsers.map(\.user_id) let editMemberAlert = EditShareMemberAlert() editMemberAlert.set(members: seletedUsers) editMemberAlert.reSetBtn() //权限判断 if self.fileDatas.filter({ $0.read == 0 }).count > 0 {//没有可读权限 editMemberAlert.readBtn.isUserInteractionEnabled = false editMemberAlert.readBtn.alpha = 0.5 } else { editMemberAlert.readBtn.isUserInteractionEnabled = true editMemberAlert.readBtn.alpha = 1 editMemberAlert.readBtn.isSelected = true } if self.fileDatas.filter({ $0.write == 0 }).count > 0 {//没有写入权限 editMemberAlert.writeBtn.isUserInteractionEnabled = false editMemberAlert.writeBtn.alpha = 0.5 } else { editMemberAlert.writeBtn.isUserInteractionEnabled = true editMemberAlert.writeBtn.alpha = 1 } if self.fileDatas.filter({ $0.deleted == 0 }).count > 0 {//没有删权限 editMemberAlert.deleteBtn.isUserInteractionEnabled = false editMemberAlert.deleteBtn.alpha = 0.5 } else { editMemberAlert.deleteBtn.isUserInteractionEnabled = true editMemberAlert.deleteBtn.alpha = 1 } editMemberAlert.sureCallback = { [weak self] read, write, delete in guard let self = self else { return } LoadingView.show() NetworkManager.shared.shareFiles(paths: filePaths, usersId: userIds, read: read, write: write, delete: delete, fromUser: UserManager.shared.currentUser.nickname) { respond in SceneDelegate.shared.window?.makeToast("共享成功".localizedString) editMemberAlert.removeFromSuperview() LoadingView.hide() self.navigationController?.popViewController(animated: true) } failureCallback: { code, err in LoadingView.hide() SceneDelegate.shared.window?.makeToast("共享失败".localizedString) } } SceneDelegate.shared.window?.addSubview(editMemberAlert) }2.4.3 文件上传下载#
2.4.3.1 文件上传选择器#

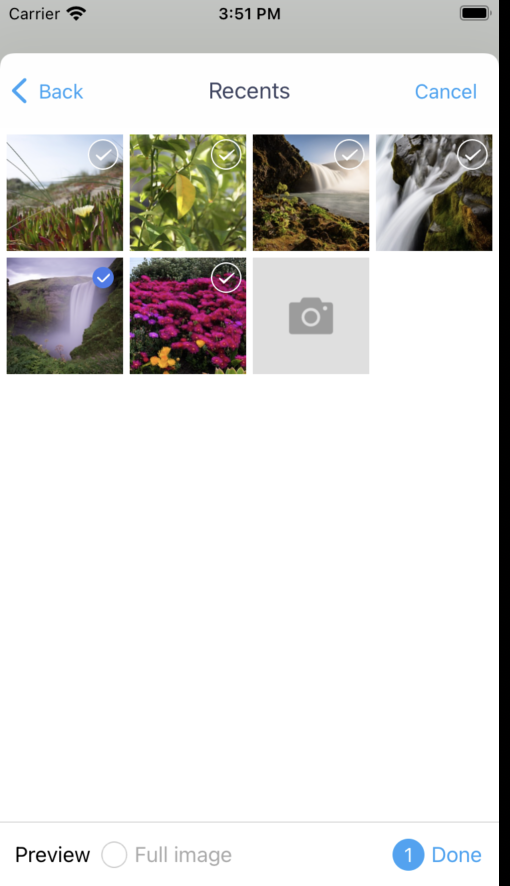

文件上传选择器中图片和视频的选择器采用的是第三方库TZImagePickerController,详细介绍及使用方法可参考TZImagePickerController,其他文件的选择器则采用系统自带的UIDocumentPickerViewController.
2.4.3.2 文件上传下载功能#
智汀云盘App的上传、下载功能是调用gomobile封装的库实现的.该库实现了文件的分片上传、分片下载、断点续传等功能，可以很方便的给客户端调用.iOS端基于该库封装了GoFileManager类，方便项目中使用.
GoFileManager类代码片段:
/// 下载任务 /// - Parameters: /// - url: 任务url func download(path: String) { goOperationQueue.async { [weak self] in guard let self = self else { return } print(Thread.current) /// 家庭scopeToken let scopeToken = AreaManager.shared.currentArea.scope_token /// 文件夹密码 let pwd = self.getDirDownloadPwd(by: path)
let downloader = GonetGetFileDownloader(self.downloadUrlFromPath(path), self.goCachePath, "{\"scope-token\":\"\(scopeToken)\", \"pwd\":\"\(pwd)\"}") self.taskCountChangePublisher.send(()) if self.getDownloadingCount() < 2 { downloader?.start(self.goDownloadCallbackObj) } } } /// 上传文件 /// - Parameters: /// - urlPath: 上传地址 /// - filename: 文件名 /// - tmpPath: 文件位置(图片、视频为绝对路径 其他文件为沙盒tmp下相对路径) /// - scopeToken: scopeToken func upload(urlPath: String, filename: String, tmpPath: String) { goOperationQueue.async { [weak self] in guard let self = self else { return } var filePath = tmpPath if let path = tmpPath.components(separatedBy: "file://").last { filePath = path } let scopeToken = AreaManager.shared.currentArea.scope_token let pwd = self.getDirUploadPwd(by: urlPath)
let uploader = GonetGetFileUploader("\(urlPath)\(filename)", self.goCachePath, filePath, filename, "{\"scope-token\":\"\(scopeToken)\", \"pwd\":\"\(pwd)\"}") try? uploader?.createTmpFile() self.taskCountChangePublisher.send(()) if self.getUploadingCount() < 2 { uploader?.start(self.goUploadCallbackObj) } } }2.4.4 权限说明#
读：model类型的read为0则无可读权限，为1则有可读权限。
1、查看该文件夹及其下面所有文件/文件夹的权限； 2、有权限才展示对应文件夹的入口
写：model类型的write为0则无可写权限，为1则有可写权限。
1、包括新建文件夹、上传、重命名、共享、下载的权限； 2、有权限才展示对应操作的入口；
删：model类型的delete为0则无可删权限，为1则有可删权限。
1、包括移动、删除的权限；
2、有权限才展示对应的操作的入口；
3、有移动、复制的权限，不代表能成功移动复制，需要看是否有移入文件夹的【写】权限，有才能操作；
2.5 文件夹加密逻辑#
2.5.1 加密文件夹—加密过程#
1.文件夹的创建可设置私人文件夹及加密过程：
2.访问服务器接口，创建私人文件夹
NetworkManager.shared.createFolder(name: name, pool_name: pool_name, partition_name: partition_name, is_encrypt: is_encrypt, pwd: pwd, confirm_pwd: confirmPwd, mode: mode, auth: members) { [weak self] _ in self?.showToast("保存成功".localizedString) self?.navigationController?.popViewController(animated: true)
} failureCallback: { [weak self] code, err in self?.hideLoading() self?.showToast(err) }3.创建给可访问用户后可在该用户的文件列表内展示。
2.5.2 加密文件夹—解密过程#
1.文件列表数据Model中属性is_encrypt 为 1 时，则为加密文件或文件夹
2.加密文件夹样式的区分。
3.加密文件夹进入的逻辑如下
- tableview点击相应代理方法，具体参考
MyFileViewController.swift
if file.is_encrypt == 1 {//加密文件 //存储的密码对象 let key = AreaManager.shared.currentArea.scope_token + file.path let pwdJsonStr:String = UserDefaults.standard.value(forKey: key) as? String ?? "" let pwdModel = PasswordModel.deserialize(from: pwdJsonStr) if pwdModel != nil { //计算时间差 let timeTemp = TimeTool.TimeInterval(FromTime: pwdModel!.saveTime) if timeTemp > 72 {//大于72小时 //重新输入密码 pushToFolder(isNeedPwd: true, file: file) }else{ //无需输入密码 pushToFolder(isNeedPwd: false, file: file) } }else{ //需要重新输入密码 pushToFolder(isNeedPwd: true, file: file) } }else{ //无需输入密码 pushToFolder(isNeedPwd: false, file: file) } private func pushToFolder(isNeedPwd:Bool,file:FileModel){ let vc = FolderViewController() vc.currentPath = file.path vc.currentPaths = ["文件",file.name] vc.encrytRootFile = file vc.isWriteRoot = (file.write == 1) let key = AreaManager.shared.currentArea.scope_token + file.path if file.is_encrypt == 1 { vc.rootPasswordKey = key }else{ vc.rootPasswordKey = "" } if isNeedPwd { //存储文件夹根目录Key self.tipsTestFieldAlert = TipsTestFieldAlertView.show(message: "请输入密码", sureCallback: { pwd in print("密码是\(pwd)") NetworkManager.shared.decryptFolder(name: file.path, password: pwd) {[weak self] response in guard let self = self else {return} //存储时间和密码 let pwdModel = PasswordModel() pwdModel.password = pwd //当前时间 let dateFormatter = DateFormatter() dateFormatter.dateFormat = "yyyy-MM-dd HH:mm:ss" pwdModel.saveTime = dateFormatter.string(from: Date()) UserDefaults.standard.setValue(pwdModel.toJSONString(prettyPrint:true), forKey: key) //解密成功，进入文件夹 let nav = BaseNavigationViewController(rootViewController: vc) nav.modalPresentationStyle = .fullScreen nav.transitioningDelegate = self.transitionUtil self.navigationController?.present(nav, animated: true, completion: nil) } failureCallback: { code, err in self.showToast(err) } }) }else{ //无需输入密码 let nav = BaseNavigationViewController(rootViewController: vc) nav.modalPresentationStyle = .fullScreen nav.transitioningDelegate = transitionUtil self.navigationController?.present(nav, animated: true, completion: nil) } }- 加密文件夹进入子集目录需携带最初加密的文件，方便获取路径以及密码
- 解密过程逻辑如下：（其中规则根据自身项目的需求来定，本项目以超出72小时则自动失效为准则,所以需存储首次解密的时间）
//存储文件夹根目录Key self.tipsTestFieldAlert = TipsTestFieldAlertView.show(message: "请输入密码", sureCallback: { pwd in print("密码是\(pwd)") NetworkManager.shared.decryptFolder(name: file.path, password: pwd) {[weak self] response in guard let self = self else {return} //存储时间和密码 let pwdModel = PasswordModel() pwdModel.password = pwd //当前时间 let dateFormatter = DateFormatter() dateFormatter.dateFormat = "yyyy-MM-dd HH:mm:ss" pwdModel.saveTime = dateFormatter.string(from: Date()) UserDefaults.standard.setValue(pwdModel.toJSONString(prettyPrint:true), forKey: key) //解密成功，进入文件夹 let nav = BaseNavigationViewController(rootViewController: vc) nav.modalPresentationStyle = .fullScreen nav.transitioningDelegate = self.transitionUtil self.navigationController?.present(nav, animated: true, completion: nil) } failureCallback: { code, err in self.showToast(err) } })2.6 网络架构及临时通道#
2.6.1 网络架构的设计及使用的工具：Alamofire && Moya#
文件路径：Network/ApiService.swift
- ApiService 请求携带参数
enum ApiService { /// 创建目录 case createDirectory(area: Area, path: String, name: String, pwd: String = "") /// 删除文件/目录 case deleteFile(area: Area, paths: [String]) /// 文件/目录重命名 case renameFile(area: Area, path: String, name: String) /// 获取文件已上传的分块信息 case fileChunks(area: Area, hash: String) /// 目录下的文件/子目录列表 case fileList(area: Area, path: String, type:Int, page: Int = 1, page_size: Int = 30, pwd: String = "") //获取数据通道 case temporaryIP(area: Area, scheme: String = "http")}- ApiService 请求IP地址(BaseUrl)
extension ApiService: TargetType { var baseURL: URL { switch self { case .deleteFile(let area, _), .renameFile(let area, _, _), .fileChunks(let area, _), .fileList(let area, _, _, _, _, _), return URL(string: "\(area.requestURL)")!
//临时通道接口需向云端服务器请求数据 case .temporaryIP: return URL(string:"云端服务器地址")! } }}- ApiService 请求地址的拼接(Path)
var path: String {
switch self { case .deleteFile: return "/plugin/wangpan/resources" case .renameFile(_, let path, _): return "/plugin/wangpan/resources/\(path)" case .fileChunks(_, let hash): return "/plugin/wangpan/chunks/\(hash)" case .fileList(_, let path, _, _, _, _): return "/plugin/wangpan/resources/\(path)" case .temporaryIP: return "/datatunnel" } }- ApiService 请求方式(Get,Post)
var method: Moya.Method { switch self { case .deleteFile: return .delete case .renameFile: return .put case .fileChunks: return .get case .fileList: return .get case .temporaryIP: return .get }}- ApiService 创建Parameters Task
var task: Task { switch self { case .deleteFile(_, let paths): return .requestParameters(parameters: ["paths" : paths], encoding: JSONEncoding.default) case .renameFile(_, _, let name): return .requestParameters(parameters: ["name": name], encoding: JSONEncoding.default) case .fileChunks: return .requestPlain case .fileList(_, _, let type, let page ,let page_size, _): return .requestParameters(parameters: ["type": type, "page": page, "page_size": page_size], encoding: URLEncoding.default) case .temporaryIP(_, let scheme): return .requestParameters( parameters: [ "scheme": scheme ], encoding: URLEncoding.default ) }}2.6.2 网络请求的构建#
扩展 Moya数据请求方式：
- 网络请求方法 extension MoyaProvider { ... }
/// 进行网络请求 /// - Parameters: /// - target: 请求的target /// - modelType: response解析的model /// - successCallback: 成功回调 /// - failureCallback: 失败回调 /// - Returns: 请求 @discardableResult func requestNetwork<T: BaseModel>(_ target: Target, modelType: T.Type, successCallback: ((_ response: T) -> Void)?, failureCallback: ((_ code: Int, _ errorMessage: String) -> Void)? = nil) -> Moya.Cancellable? { return request(target) { (result) in switch result { case .success(let response): if printDebugInfo { print("-----------------------------< ApiService >--------------------------------") print(Date()) print("---------------------------------------------------------------------------") print("header: \(target.headers ?? [:])") print("---------------------------------------------------------------------------") print("method: \(target.method.rawValue)") print("---------------------------------------------------------------------------") print("baseUrl: \(target.baseURL)") print("---------------------------------------------------------------------------") print("target: \(target.path)") print("---------------------------------------------------------------------------") print("parameters: \(target.task)") } guard response.statusCode == 200, let model = response.data.map(ApiServiceResponseModel<T>.self) else { failureCallback?(response.statusCode, "error: \(String(data: response.data, encoding: .utf8) ?? "unknown") code: \(response.statusCode)") print("---------------------------------------------------------------------------") print("error: \(String(data: response.data, encoding: .utf8) ?? "unknown")") print("---------------------------------------------------------------------------\n\n") return } if model.status == 0 { successCallback?(model.data) } else { failureCallback?(model.status, model.reason) } case .failure(let error): let moyaError = error as MoyaError let statusCode = moyaError.response?.statusCode ?? -1 let errorMessage = "error" failureCallback?(statusCode, errorMessage) return } } }
- 外部请求数据接口方法: 参考文件路径：Network/NetworkManager.swift
/// 删除文件或目录 /// - Parameters: /// - paths: 要删除的文件或目录 path数组 /// - successCallback: 成功回调 /// - failureCallback: 失败回调 /// - Returns: moya网络请求 func deleteFile(area: Area = AreaManager.shared.currentArea, paths: [String], successCallback: ((ExampleResponse) -> Void)?, failureCallback: ((Int, String) -> Void)?) { requestTemporaryIP(area: area) { [weak self] ip in guard let self = self else { return } //获取临时通道地址 if ip != "" { area.temporaryIP = "http://" + ip + "/api" } //请求结果 self.apiService.requestNetwork(.deleteFile(area : area, paths: paths), modelType: ExampleResponse.self, successCallback: successCallback, failureCallback: failureCallback) } failureCallback: { code, err in failureCallback?(code,err) } } NetworkManager.shared.deleteFile(paths: paths) { response in //删除文件成功的回调 } failureCallback: { code, err in //删除文件失败的回调 }2.6.3 临时通道含义及功能#
- 在非局域网的情况下，访问服务器需要走临时通道地址。
- 获取临时通道的方式如下：
//获取临时通道地址 private func requestTemporaryIP(area: Area = AreaManager.shared.currentArea, complete:((String)->())?, failureCallback: ((Int, String) -> ())?) { //在局域网内则直接连接局域网 if area.bssid == NetworkStateManager.shared.getWifiBSSID() && area.bssid != nil || !UserManager.shared.isCloudUser {//局域网 complete?("") GoFileNewManager.shared.updateHost(host: "\(AreaManager.shared.currentArea.sa_lan_address ?? "")/api") return } //不在SA局域网内且不是云端授权的情况，提示用户云端授权才可在外网使用 if area.bssid != NetworkStateManager.shared.getWifiBSSID() && area.bssid != nil && !UserManager.shared.isCloudUser { failureCallback?(-1, "智慧中心连接失败，请在智汀家庭云登录后重新授权连接或在局域网内连接") return } //获取本地存储的临时通道地址 let key = area.sa_user_token let temporaryJsonStr:String = UserDefaults.standard.value(forKey: key) as? String ?? "" let temporary = TemporaryResponse.deserialize(from: temporaryJsonStr) //验证是否过期，直接返回IP地址 if let temporary = temporary {//有存储信息 if timeInterval(fromTime: temporary.saveTime , second: temporary.expires_time) { //地址并未过期 GoFileNewManager.shared.updateHost(host: temporary.host) complete?(temporary.host) return } } //过期，请求服务器获取临时通道地址 apiService.requestNetwork(.temporaryIP(area: AreaManager.shared.currentArea, scheme: "http"), modelType: TemporaryResponse.self) { response in //获取临时通道地址及有效时间,存储在本地 //更新时间和密码 let temporaryModel = TemporaryResponse() temporaryModel.host = response.host temporaryModel.expires_time = response.expires_time //当前时间 let dateFormatter = DateFormatter() dateFormatter.dateFormat = "yyyy-MM-dd HH:mm:ss" temporaryModel.saveTime = dateFormatter.string(from: Date()) UserDefaults.standard.setValue(temporaryModel.toJSONString(prettyPrint:true), forKey: key) //返回ip地址 complete?(response.host) GoFileNewManager.shared.updateHost(host: response.host)
} failureCallback: { code, error in failureCallback?(code,error) } }- 临时通道根据下发的有效时间来校验，具体根据自身项目规则来定。
- 临时通道获取成功后，可以看到需替换掉Moyal请求的BaseUrl。
requestTemporaryIP(area: area) { [weak self] ip in guard let self = self else { return } //获取临时通道地址 if ip != "" { //替换当前的临时通道地址 area.temporaryIP = "http://" + ip + "/api" } //请求结果 self.apiService.requestNetwork(.deleteFile(area : area, paths: paths), modelType: ExampleResponse.self, successCallback: successCallback, failureCallback: failureCallback) } failureCallback: { code, err in //获取临时通道失败，反馈出去结果 failureCallback?(code,err) }文件路径：Base/Model/Area.swift
var temporaryIP = "https://sc.zhitingtech.com/api" /// 请求的地址url(判断请求sa还是sc) var requestURL: URL { if bssid == NetworkStateManager.shared.getWifiBSSID() && bssid != nil {//局域网 return URL(string: "\(sa_lan_address ?? "")/api")! } else { return URL(string: temporaryIP)! } }2.7 存储池及存储池分区#
2.7.1 存储池#
在我的页面，若该用户为拥有者，则可出现存储池入口，拥有者可操作存储池的权限。
文件路径：ThirdParty/StorageManage/StorageManageViewController.swift
- 列表数据根据服务器获取，顶部数据为SA的外接硬盘数据，下部分则为云端创建的存储池数据。
private func reloadData() { let semaphore = DispatchSemaphore(value: 1) if hardDisks.count == 0 && storagePools.count == 0 { showLoading(.custom(.white_ffffff)) } DispatchQueue.global().async { semaphore.wait() /// 获取限制硬盘列表 NetworkManager.shared.hardDiskList { [weak self] response in guard let self = self else { return } self.hardDisks = response.list semaphore.signal()
} failureCallback: { code, err in semaphore.signal() } /// 挂起任务,等待硬盘列表结果 semaphore.wait() /// 获取存储池列表 /// 传0直接获取全部数据 不分页 NetworkManager.shared.storagePoolList(page: 0, pageSize: 0) { [weak self] response in guard let self = self else { return } self.storagePools = response.list semaphore.signal() } failureCallback: { code, err in semaphore.signal() } /// 挂起任务,等待存储池列表结果 semaphore.wait() DispatchQueue.main.async { self.collectionView.mj_header?.endRefreshing() self.collectionView.reloadData() self.hideLoading() semaphore.signal() } } }2.7.1.1 添加存储池#
文件路径：ThirdParty/StorageManage/AddToStoragePoolViewController.swift
/// 添加到新存储池 private func tapAddStorage() { print("点击添加到新的存储池") newStoragePoolAlert = SetNameAlertView(setNameType: .createStoragePool, currentName: "") newStoragePoolAlert?.setNameCallback = { [weak self] name in guard let self = self else { return } if name.isEmpty { SceneDelegate.shared.window?.makeToast("请输入名称".localizedString) return } if self.storagePools.map(\.name).contains(name) { SceneDelegate.shared.window?.makeToast("存储名称不能重复".localizedString) return } /// 请求添加存储池接口 LoadingView.show() NetworkManager.shared.addStoragePool(name: name, disk_name: self.disk_name) { [weak self] _ in guard let self = self else { return } LoadingView.hide() SceneDelegate.shared.window?.makeToast("添加成功") self.newStoragePoolAlert?.removeFromSuperview() self.navigationController?.popViewController(animated: true) } failureCallback: { [weak self] code, err in guard let self = self else { return } LoadingView.hide() if code == 205 { // 磁盘挂载失败 self.newStoragePoolAlert?.removeFromSuperview() let singleTipsAlert = SingleTipsAlertView(detail: "硬盘(\(self.disk_name))添加到存储池(\(name))失败，请重新添加。", detailColor: .custom(.black_3f4663), sureBtnTitle: "确定") singleTipsAlert.sureCallback = { [weak self] in guard let self = self else { return } singleTipsAlert.removeFromSuperview() self.navigationController?.popViewController(animated: true) } SceneDelegate.shared.window?.addSubview(singleTipsAlert) } else { SceneDelegate.shared.window?.makeToast(err) } } } SceneDelegate.shared.window?.addSubview(newStoragePoolAlert!) }2.7.1.2 删除存储池#
private func deletePool(){ let tipsAlert = TipsAlertView(title: "删除确认", detail: "确认删除该存储池吗？删除需要一些时间处理，且删除后，该存储池下的所有分区及其文件夹/文件都全部删除", warning: "操作不可撤销，请谨慎操作！", sureBtnTitle: "确定删除") tipsAlert.sureCallback = { [weak self] in guard let self = self else { return }
tipsAlert.sureBtn.buttonState = .waiting NetworkManager.shared.deleteStoragePool(name: self.currentStoragePoolName) {[weak self] response in guard let self = self else { return } tipsAlert.removeFromSuperview() //弹框提示后台处理 let singleTipsAlert = SingleTipsAlertView(detail: "正在删除存储池，已为您后台运行，可返回列表刷新查看。", detailColor: .custom(.black_3f4663), sureBtnTitle: "确定") singleTipsAlert.sureCallback = { [weak self] in guard let self = self else { return } singleTipsAlert.removeFromSuperview() self.navigationController?.popViewController(animated: true) } SceneDelegate.shared.window?.addSubview(singleTipsAlert)
// self.showToast("删除成功")// self.navigationController?.popViewController(animated: true) } failureCallback: { [weak self] code, err in guard let self = self else { return } self.showToast(err) tipsAlert.sureBtn.buttonState = .normal }
} SceneDelegate.shared.window?.addSubview(tipsAlert) }2.7.2 存储池分区#
2.7.2.1 添加存储池分区#
NetworkManager.shared.addPartition(name: nameTextFiled.text ?? "", capacity: Float(capacity) ?? 0, unit: capacityButton.titleLabel?.text ?? "GB", pool_name: currentStoragePoolName) {[weak self] response in LoadingView.hide() let singleTipsAlert = SingleTipsAlertView(detail: "正在保存分区信息，预计需要一些时间处理,已为您后台运行,可返回列表刷新查看", detailColor: .custom(.black_3f4663), sureBtnTitle: "确定") singleTipsAlert.sureCallback = { [weak self] in guard let self = self else { return } singleTipsAlert.removeFromSuperview() self.navigationController?.popViewController(animated: true) } SceneDelegate.shared.window?.addSubview(singleTipsAlert) } failureCallback: {[weak self] code, err in LoadingView.hide() self?.showToast(err) }2.7.2.2 删除存储池分区#
NetworkManager.shared.deletePartition(name: self.currentModel.name, pool_name: self.currentStoragePoolName) {[weak self] response in guard let self = self else {return} tipsAlert.sureBtn.buttonState = .normal tipsAlert.removeFromSuperview() //弹框提示后台处理 let singleTipsAlert = SingleTipsAlertView(detail: "正在删除分区，已为您后台运行，可返回 列表刷新查看。", detailColor: .custom(.black_3f4663), sureBtnTitle: "确定") singleTipsAlert.sureCallback = { [weak self] in guard let self = self else { return } singleTipsAlert.removeFromSuperview() self.navigationController?.popViewController(animated: true) } SceneDelegate.shared.window?.addSubview(singleTipsAlert) } failureCallback: {[weak self] code, err in guard let self = self else {return} tipsAlert.sureBtn.buttonState = .normal self.showToast(err) }2.7.2.3 编辑存储池分区#
judgeInfoChange(editName: nameTextFiled.text ?? "", editCapacity: capacity, unit: capacityButton.titleLabel?.text ?? "GB") {[weak self] capacityChanged, nameChanged, allowCapacity in guard let self = self else {return} if allowCapacity == 2 { LoadingView.hide() self.showToast("分区内存不能减少") return } if capacityChanged == 0 && nameChanged == 0{ LoadingView.hide() self.showToast("未修改任何内容") return } //保存编辑内容 NetworkManager.shared.editPartition(name: self.currentModel.name, new_name: self.nameTextFiled.text ?? "", pool_name: self.currentStoragePoolName, capacity: Float(capacity) ?? 0, unit: self.capacityButton.titleLabel?.text ?? "GB") {[weak self] response in LoadingView.hide() var showText = "" if nameChanged == 1 && capacityChanged == 0 {//仅编辑名称 showText = "保存成功" }else{ showText = "正在保存分区信息，需要一些时间处理,已为您后台运行，可返回列表刷新查看。" } let singleTipsAlert = SingleTipsAlertView(detail: showText, detailColor: .custom(.black_3f4663), sureBtnTitle: "确定") singleTipsAlert.sureCallback = { [weak self] in guard let self = self else { return } singleTipsAlert.removeFromSuperview() self.navigationController?.popViewController(animated: true) } SceneDelegate.shared.window?.addSubview(singleTipsAlert) } failureCallback: {[weak self] code, err in LoadingView.hide() self?.showToast(err) } }2.8 文件夹管理#
2.8.1 文件夹列表: FolderManageViewController.swift#
/// 请求数据 private func requestData() { if folders.count == 0 { showLoading() } let page = (folders.count / 30) + 1 NetworkManager.shared.folderList(page: page, pageSize: 30) { [weak self] response in guard let self = self else { return } self.hideLoading() self.folders.append(contentsOf: response.list) self.collectionView.mj_header?.endRefreshing() self.collectionView.mj_footer?.endRefreshing() if !response.pager.has_more { self.collectionView.mj_footer?.endRefreshingWithNoMoreData() } self.collectionView.reloadData() } failureCallback: { [weak self] code, err in self?.collectionView.mj_header?.endRefreshing() self?.collectionView.mj_footer?.endRefreshing() self?.collectionView.reloadData() self?.hideLoading() self?.showToast(err) } } /// cell配置 func collectionView(_ collectionView: UICollectionView, cellForItemAt indexPath: IndexPath) -> UICollectionViewCell { let cell = collectionView.dequeueReusableCell(withReuseIdentifier: FolderManageCell.reusableIdentifier, for: indexPath) as! FolderManageCell let folder = folders[indexPath.row] cell.folder = folder /// menu按钮回调 cell.menuCallback = { [weak self] in guard let self = self, let cell = self.collectionView.cellForItem(at: indexPath) else { return } let x = 35.ztScaleValue let y = 50.ztScaleValue + Screen.k_nav_height let alertPoint = cell.convert(CGPoint(x: x, y: y), to: self.view) let alert = MenuAlert(items: [.init(title: "更改密码", icon: .assets(.icon_lock))], alertPoint: alertPoint) alert.selectCallback = { [weak self] item in guard let self = self else { return } if item.title == "更改密码" { let alert = FolderEditPwdAlert() alert.saveCallback = { [weak self] old, new, confrim in guard let self = self else { return } LoadingView.show() NetworkManager.shared.editFolderPwd(id: folder.id, oldPwd: old, newPwd: new, confirmPwd: confrim) { [weak self] _ in guard let self = self else { return } alert.removeFromSuperview() LoadingView.hide() SceneDelegate.shared.window?.makeToast("修改成功".localizedString) self.reloadData() } failureCallback: { code, err in LoadingView.hide() SceneDelegate.shared.window?.makeToast(err) } } SceneDelegate.shared.window?.addSubview(alert) } } SceneDelegate.shared.window?.addSubview(alert) } /// 状态cover 按钮回调 cell.statusCoverCallback = { [weak self] index in guard let self = self else { return } switch folder.statusEnum { case .failToDelete: if index == 0 { // 修改文件夹失败 - 重试 self.showLoading() NetworkManager.shared.restartAsyncTask(task_id: folder.task_id) { [weak self] _ in guard let self = self else { return } self.hideLoading() self.reloadData() } failureCallback: { [weak self] code, err in self?.hideLoading() self?.showToast(err) } } case .failToEdit: if index == 0 { // 修改文件夹失败 - 确定 self.showLoading() NetworkManager.shared.deleteAsyncTask(task_id: folder.task_id) { [weak self] _ in guard let self = self else { return } self.hideLoading() self.reloadData() } failureCallback: { [weak self] code, err in self?.hideLoading() self?.showToast(err) } } default: break } } return cell }2.8.2 文件夹设置: FolderManageSettingViewController.swift#
/// 保存文件夹设置 @objc private func tapSave() { guard let pool = selectedPool, let partition = selectedPartition else { return }
showLoading() NetworkManager.shared.setFolderSettings(poolName: pool.name, partitionName: partition.name, autoDel: autoDeleteCell.switchBtn.isOn) { [weak self] _ in self?.hideLoading() SceneDelegate.shared.window?.makeToast("保存成功".localizedString) self?.navigationController?.popViewController(animated: true) } failureCallback: { [weak self] code, err in self?.hideLoading() self?.showToast(err) } } /// 获取文件夹设置 private func getFolderSettings() { showLoading(.custom(.white_ffffff)) let sp = DispatchSemaphore(value: 1) DispatchQueue.global().async { sp.wait() /// 1获取存储池列表 NetworkManager.shared.storagePoolList(page: 0, pageSize: 0) { [weak self] response in guard let self = self else { return } self.storagePools = response.list sp.signal()
} failureCallback: { _, _ in sp.signal() } sp.wait() NetworkManager.shared.getFolderSettings { [weak self] settings in sp.signal() guard let self = self else { return } self.hideLoading() self.autoDeleteCell.switchBtn.setIsOn(settings.is_auto_del) self.storageDefaultCell.nameLabel.text = "\(settings.pool_name)-\(settings.partition_name)" self.selectedPool = self.storagePools.first(where: { $0.name == settings.pool_name }) if let selectedPool = self.selectedPool { self.selectedPartition = selectedPool.lv.first(where: { $0.name == settings.partition_name }) } } failureCallback: { [weak self] code, err in sp.signal() self?.hideLoading() self?.showToast(err) } } }2.8.3 创建、编辑、删除文件夹：EditFolderViewController.swift#
/// 删除文件夹 @objc private func tapDelete() { let alert = TipsAlertView(title: "确定删除该文件夹吗？", detail: "删除后，该文件夹及其包含的所有文件夹/文件都全部删除。", warning: "操作不可撤销，请谨慎操作！", sureBtnTitle: "确认删除") alert.sureCallback = { [weak self] in guard let self = self else { return } guard let id = self.type.folderId else { return }
LoadingView.show() NetworkManager.shared.deleteFolder(id: id) { [weak self] _ in LoadingView.hide() self?.showToast("删除成功".localizedString) alert.removeFromSuperview() self?.navigationController?.popViewController(animated: true) } failureCallback: { [weak self] code, err in LoadingView.hide() self?.showToast(err) alert.removeFromSuperview() } } SceneDelegate.shared.window?.addSubview(alert) } /// 保存修改 @objc private func save() { if type == .create { let name = nameCell.textField.text ?? "" let pool_name = selectedPool?.name ?? "" let partition_name = selectedPartition?.name ?? "" let is_encrypt = isSecureCell.selectView.selectedIndex == 0 ? 1 : 0 let pwd = pwdCell1.textField.text ?? "" let confirmPwd = pwdCell2.textField.text ?? "" var mode: FolderModel.FolderMode = .shared if folderTypeCell.selectView.selectedIndex == 0 { mode = .private } showLoading() NetworkManager.shared.createFolder(name: name, pool_name: pool_name, partition_name: partition_name, is_encrypt: is_encrypt, pwd: pwd, confirm_pwd: confirmPwd, mode: mode, auth: members) { [weak self] _ in self?.showToast("保存成功".localizedString) self?.navigationController?.popViewController(animated: true)
} failureCallback: { [weak self] code, err in self?.hideLoading() self?.showToast(err) } } else { guard let folder = folder else { return } let name = nameCell.textField.text ?? "" let pool_name = selectedPool?.name ?? "" let partition_name = selectedPartition?.name ?? "" var mode: FolderModel.FolderMode = .shared if folderTypeCell.selectView.selectedIndex == 0 { mode = .private } //如果修改了分区 if pool_name != folder.pool_name || partition_name != folder.partition_name { let tipsAlert = TipsAlertView(title: "存储分区转移".localizedString, titleColor: .custom(.black_3f4663), detail: "\(name)存储分区从“\(folder.pool_name ?? "")-\(folder.partition_name ?? "")”改为“\(pool_name)-\(partition_name)”", detailColor: .custom(.black_3f4663), warning: "修改预计需要一段时间处理，且中途不可取消。确定要修改吗？".localizedString, warningColor: .custom(.red_fe0000), sureBtnTitle: "确定".localizedString) tipsAlert.sureCallback = { [weak self] in guard let self = self else { return } self.editFolder(id: folder.id, name: name, pool_name: pool_name, partition_name: partition_name, is_encrypt: folder.is_encrypt, mode: mode, auth: self.members) tipsAlert.removeFromSuperview() } SceneDelegate.shared.window?.addSubview(tipsAlert) } else { editFolder(id: folder.id, name: name, pool_name: pool_name, partition_name: partition_name, is_encrypt: folder.is_encrypt, mode: mode, auth: members) } } } /// 编辑文件夹 private func editFolder(id: Int, name: String, pool_name: String, partition_name: String, is_encrypt: Int, mode: FolderModel.FolderMode, auth: [User]) { showLoading() NetworkManager.shared.editFolder(id: id, name: name, pool_name: pool_name, partition_name: partition_name, is_encrypt: is_encrypt, mode: mode, auth: auth) { [weak self] _ in guard let self = self else { return } if pool_name != self.folder?.pool_name || partition_name != self.folder?.partition_name { //如果修改了分区 let alert = SingleTipsAlertView(detail: "存储分区转移" + "\n\n" + "\(name)存储分区正在从“\(self.folder?.pool_name ?? "")-\(self.folder?.partition_name ?? "")”改为“\(pool_name)-\(partition_name)”,已为您后台运行,可返回列表查看。", sureBtnTitle: "确定".localizedString) alert.sureCallback = { [weak self] in guard let self = self else { return } alert.removeFromSuperview() self.showToast("保存成功".localizedString) self.navigationController?.popViewController(animated: true) } SceneDelegate.shared.window?.addSubview(alert)
} else { self.showToast("保存成功".localizedString) self.navigationController?.popViewController(animated: true) } } failureCallback: { [weak self] code, err in guard let self = self else { return } self.hideLoading() if code == 20019 { //目标分区容量不足，不能迁移 let errAlert = SingleTipsAlertView(detail: "存储分区修改失败".localizedString + "\n\n" + "分区容量不足！".localizedString, sureBtnTitle: "确定".localizedString) errAlert.sureCallback = { errAlert.removeFromSuperview() } SceneDelegate.shared.window?.addSubview(errAlert) } else { self.showToast(err) } } }
